Final Cut Pro: A Better Way to Change a Color in the Frame

The production planning was almost perfect… except, during the shoot an actor wore the wrong color shirt, or a key coffee mug was the wrong color, or, something in the background is just too obvious.

You can’t go back and reshoot, so, after the swearing stops, how do you “fix it in post?”

Final Cut provides two different ways to fix the color of an object in the frame, without changing the color of the entire frame:

• Color masks
• Hue/Saturation curves

The traditional approach is to use a color mask, but, as you’ll see, these are pretty limited. A better option is to use the Hue/Saturation Curves. In this tutorial, I’ll show how to use both.

A COLOR MASK

The easiest fix is when there is a clear difference between the color you want to fix – the red balloon – and the rest of the images in the frame. The balloon is, essentially, a single color, in focus, with clearly defined edges.

In order to change the color of the red balloon, we need to select just those red colors. A shape mask won’t work, because the balloon has a very unusual shape. Instead, we need to use a color mask, which selects a portion of an image based upon its color.

Color masks can be used with the Color Board, Color Wheels or Color Curves. The operation is the same in all three. My general preference is to use the Color Wheels for color correction, which is what we’ll use for this example.

NOTE: Apple has improved the color masks a lot in recent versions, so if you, like me, have not looked at them recently, you are in for a pleasant surprise.

To apply a color mask:

• Put the playhead in the clip with the element you want to change and select the clip.

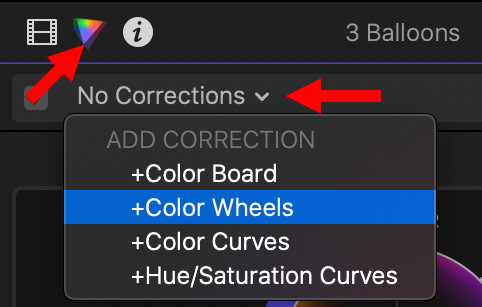

• Click the Color Inspector (left arrow) and choose Color Wheels (menu by right arrow).

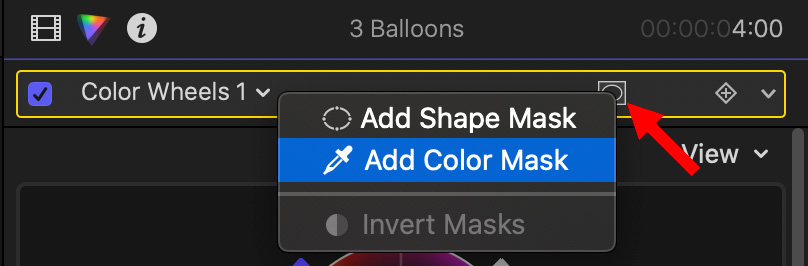

• Slide your mouse near the title “Color Wheels 1” to reveal a gray icon (red arrow). Click it and choose Add Color Mask.

NOTE: If you choose Shape Mask by mistake, make sure it is highlighted with a yellow box and press the Delete key. You can use this same technique to delete a color mask you no longer need.

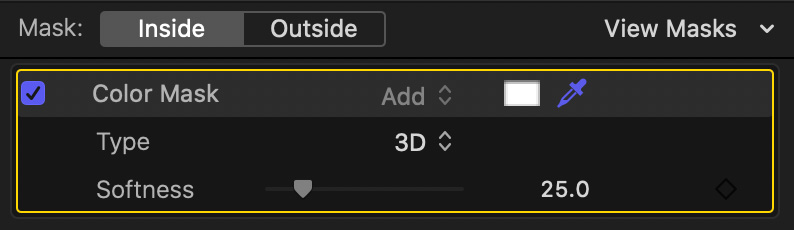

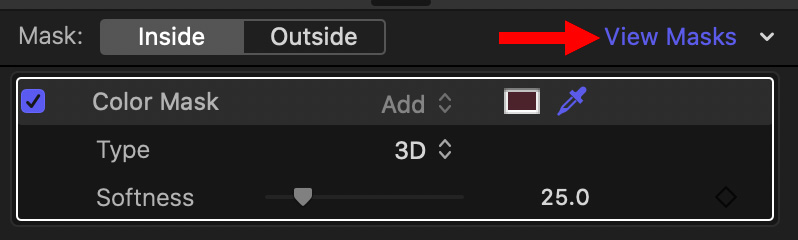

(The controls for a 3D color mask)

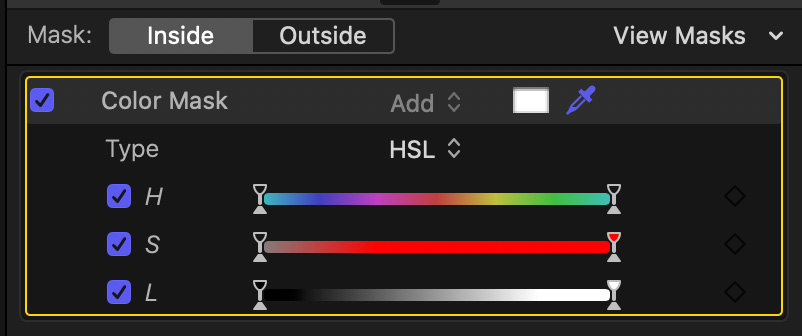

(The controls for an HSL color mask.)

There are two types of Color Masks: 3D and HSL. 3D is newer and easier to use, HSL (which stands for “Hue, Saturation & Luminance”) has more control. You select which one you want to use from the Type menu.

To apply a 3D mask:

• Select 3D from the color mask Type menu.
• Click the gray eye-dropper at the top of the mask, so that it turns blue, then click and drag inside the red balloon. Your goal is to select as much of the red as possible, without selecting any other color.

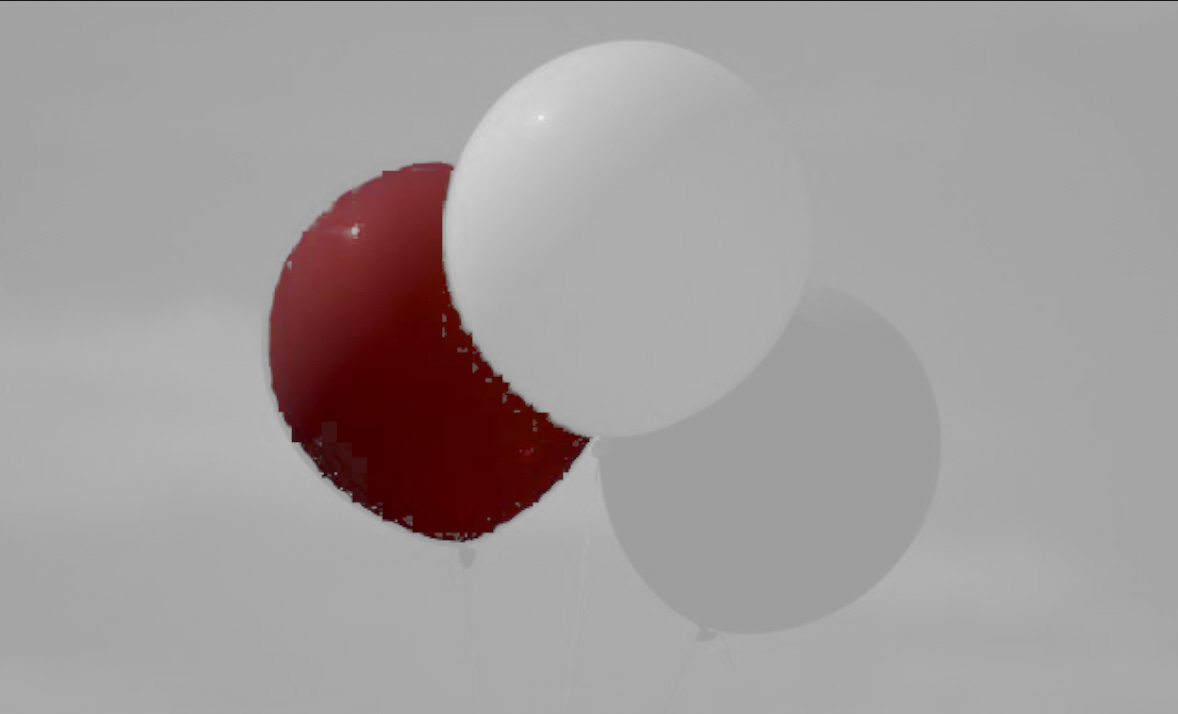

• In the Inspector, click the words View Mask in the color mask to see the current mask selection. Adjust Softness until you’ve selected as much red as possible and no other color.

To apply an HSL mask:

• Select HSL from the color mask Type menu.
• Click the gray eyedropper, so it turns blue, then drag to select just the red balloon.

• In the Inspector, click View Masks so you can see precisely what’s selected.

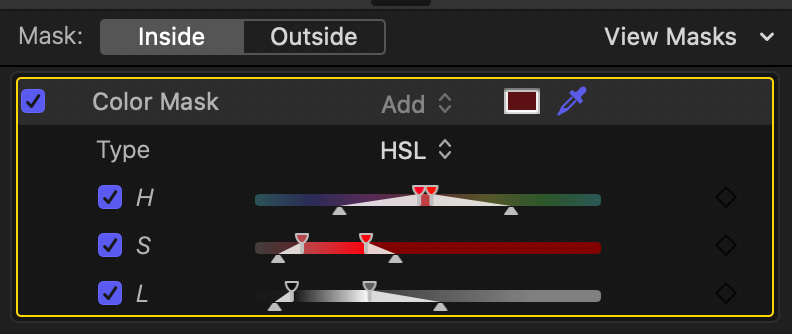

• In this example, I selected the red balloon and some of the yellow. That’s a poor selection. To clean this up, we’ll drag the HSL sliders in the mask so only the red is selected.
• First, click ON the red line in H (for Hue) and drag left or right to remove colors which aren’t red. By dragging horizontally, you are adjusting which colors (hues) are selected.

NOTE: The sliders above the red line affect color selection. The sliders below the red line affect feathering. In general, keep the feathering fairly minimal.

• Start by dragging the small sliders above H, then move to S (saturation) and end with L (luminance), tweaking each until all of the red balloon – and JUST the red balloon is selected.

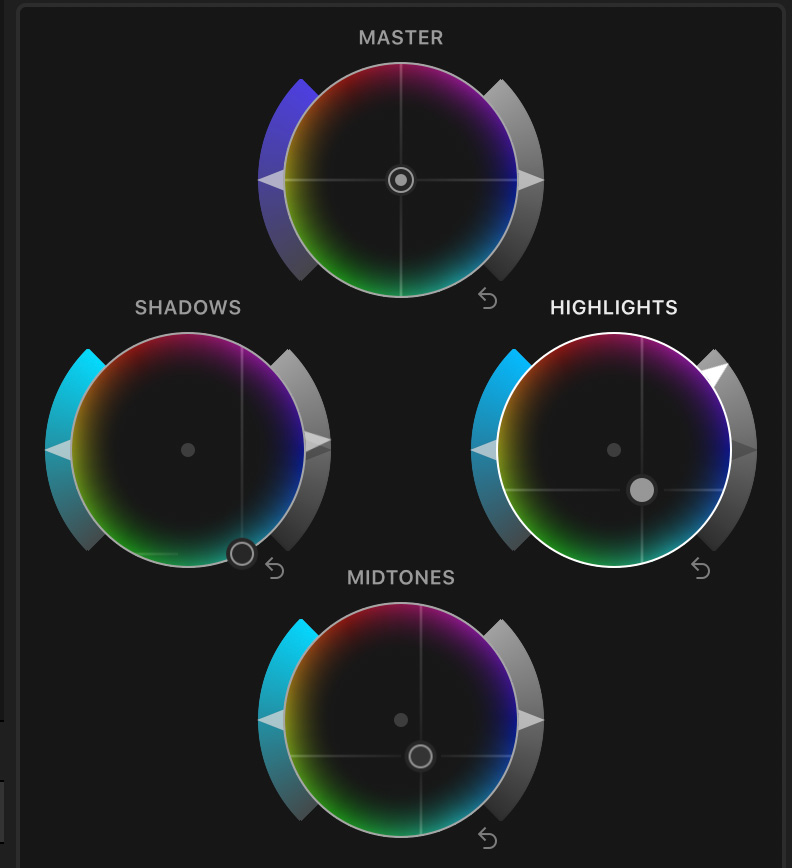

Now that you have the red color selected, adjust the color wheels to change the color, saturation and/or luminance, as illustrated in the changes I made in the screen shot above.

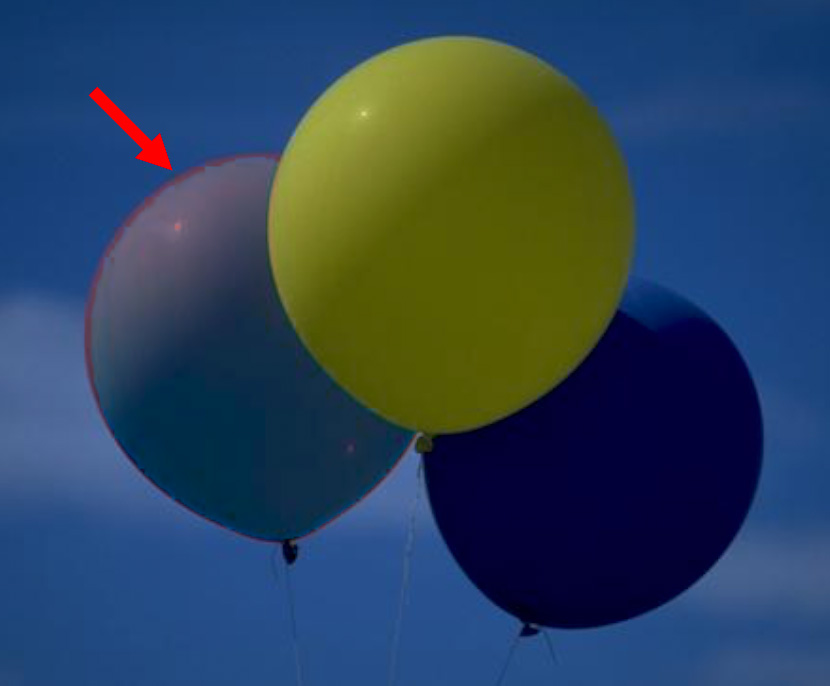

The good news is that this works. The bad news is that this does not work well. As you can see in the screen shot, there is red “fringing” around the edges of the red balloon. There is a very limited range of colors I can change this red into. Worse, this was a best case scenario. Things get much harder when the object you want to change is blurry, moving or translucent.

Time to learn a new tool.

NOTE: To remove a color control, highlight the Color Wheels effect in the Video Inspector and press Delete.

HUE/SATURATION CURVES

The Hue/Saturation Curves are specifically designed for this kind of work: to select a close range of colors and change them into something else.

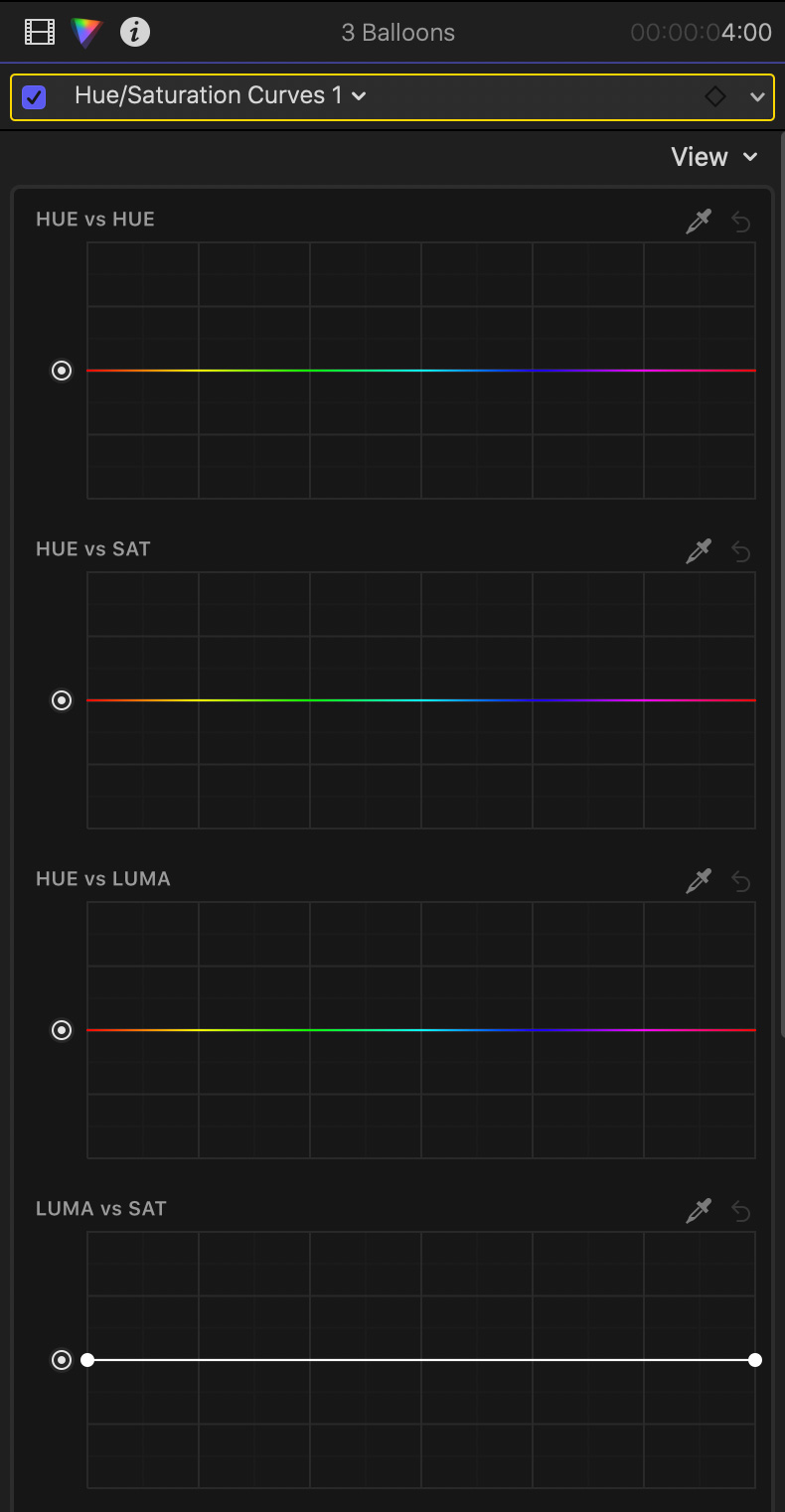

Again, put the playhead in the clip you want to change and select the clip. Then, from the Color Inspector menu, select the Hue/Saturation Curves. There are six of them:

• Hue vs. Hue. This changes the selected color into another color.
• Hue vs. Sat. This changes the saturation of the selected color.
• Hue vs. Luma. This changes the luminance (brightness) of the selected color.
• Luma vs. Sat. This changes the saturation of something with the selected luminance.
• Sat. vs. Sat. This changes the saturation of whatever you selected.
• Orange vs. Sat. This is a special case of Hue vs. Sat., specifically targeted at adjusting skin tones.

NOTE: Regardless of racial type, virtually all skin has the same color, but not the same saturation or luminance.

To change the color of the red balloon:

• Select the eyedropper for Hue vs. Hue, so it turns blue.

• Click and drag inside the red balloon such that the white circle does NOT go outside the red area. This selects the range of colors to adjust.

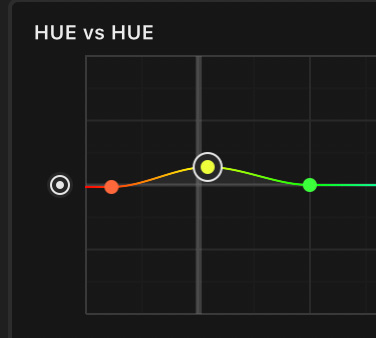

• This sets three “dots” on the color line. The left and right dots control the range of colors, the middle dot is used for corrections. Bounding dots are adjusted horizontally. The middle color dot is adjusted vertically.

NOTE: In the screen shot above, I selected the color yellow so you could see all three dots more easily. Selecting red wraps the dots around the end of the line, as red exists on both the left and right side. The two dots are still bounding the color, but because one is wrapped around, it is harder to see the relationship.

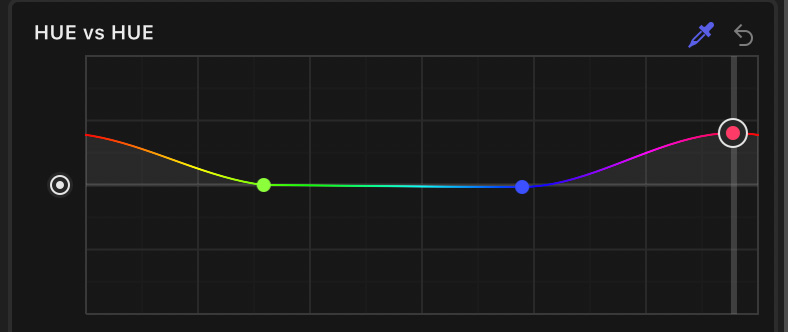

• Now that you know about the three dots, here’s what the selection looks for the red balloon. Drag the center (red and circled) dot up or down to change the color.

With this color option, you have a LOT more colors to choose from and the ugly edges we saw with a color mask disappears. (The slight red fringing on the yellow balloon is caused by compression artifacts.)

CHANGING BLURRY COLORS

But, wait! There’s more…

Remember, these balloons were a “best case” scenario.

Image courtesy: Model Railroad Builders (www.franandmileshale.com)

In this example of the red caboose, nothing is in focus, because the model train is moving.

A color mask breaks down completely, as you can see here. Worse, due to limitations in both the color wheels and color board, I can’t create a clean blue or green, just variations on ugly red.

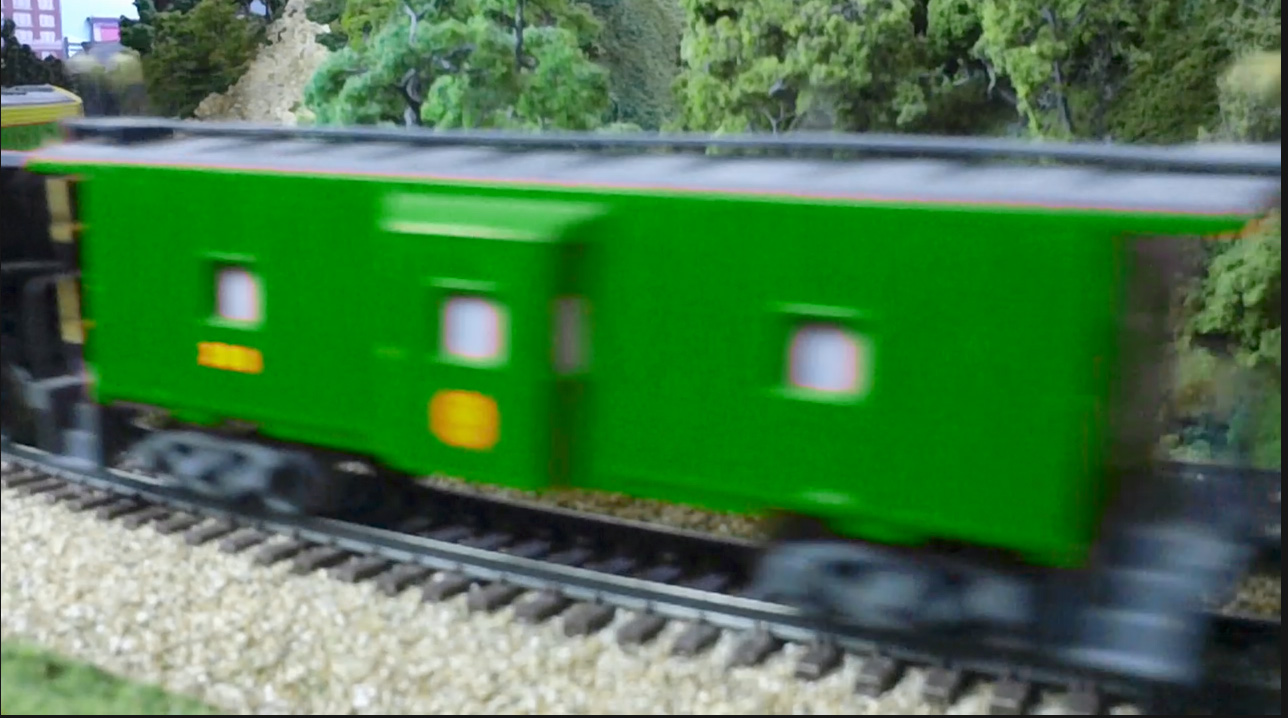

But the HSL Curves Hue vs. Hue makes it easy to cleanly change the color.

CHANGING TRANSLUCENT COLORS

Here’s another example – translucent flames roaring out of a furnace used for melting glass for glass blowing.

I’ll spare you the results of the color mask. It had a very hard time selecting the correct color of the translucent flames.

But, using Hue vs. Hue and selecting the orange/yellow heart of the flames, I was able to change all the flames, even those that were translucent over a dark gray background. Plus, we also see a variety of shades of color in the middle of the furnace, something that a color mask would not allow.

Even better, while the flames flash wildly around the frame, the colors never shifted from the new blue setting I applied, with no fringing and no weird borders.

NOTE: To get this to look its best, I tweaked the location of the two bounding dots a bit by dragging them horizontally on the color line.

SUMMARY

Like the other color controls, Hue/Saturation Curves support Shape and Color masks. But, unlike the other controls. most of the time you won’t need to use them.

Using Hue/Saturation Curves provides more precise control over changing colors in the frame. Once you learn how they work, you’ll find yourself almost never using a color mask again.

---
